Technical overview

Pressure Relief &
Vent Sizing Calculations

Pressure relief and vent sizing calculations are the engineering foundation of every overpressure protection scheme — an incorrect orifice letter or missed two-phase correction can leave a vessel with less than 50% of the protection it appears to have. Beyond simple gas-service orifice areas, modern practice requires critical vs. subcritical flow discrimination per API 520 Kd / Kb / Kw correction logic, two-phase omega-method venting for reactive and flashing systems per the DIERS methodology, rupture disc combination-device credit, and emergency atmospheric tank venting per API 2000. Each calculation must be traceable to code, document its governing assumptions, and be structured for regulatory and inspection-authority review. Undocumented legacy calculations — particularly on atmospheric storage tanks or batch reactors — are among the most common OSHA PSM mechanical integrity deficiencies found during NEP inspections.

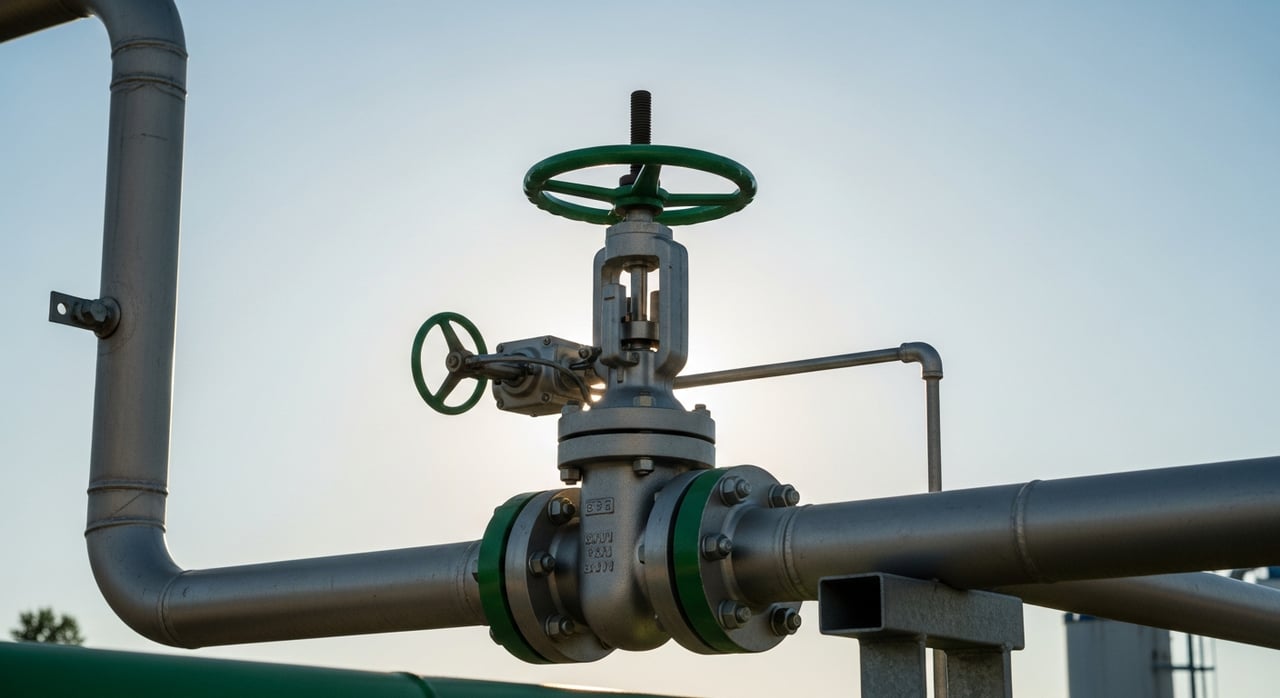

Pressure Relief & Vent Sizing Calculations — Overview
Engineering process

Pressure Relief & Vent Sizing Calculations workflow

Design Basis & Code Confirmation

Confirm applicable code (API 520, ASME Sec VIII, API 2000, EN ISO 4126), establish MAWP, test pressure, operating pressure, and fluid-service data per vessel.

Overpressure Scenario Identification

Identify all credible overpressure cases from P&IDs, HAZOP, and engineering judgement: blocked outlet, fire, control-valve failure, thermal expansion, runaway reaction.

Orifice Area Calculation

Apply API 520 Pt I equations for gas/vapour, steam, liquid, or two-phase omega-method service; determine critical vs. subcritical flow and Kd / Kw correction factors.

Standard Orifice Designation

Select API standard orifice letter (D through T); verify minimum-required vs. next-available area; determine rupture disc combination sizing if required.

Backpressure & Inlet Loss Verification

Verify 3% inlet pressure-loss rule with fitting calculations; calculate built-up backpressure; confirm PRV type (conventional, balanced-bellows, pilot-operated).

Datasheet & Calculation Package

Prepare PRV datasheet, traceable calculation worksheet, procurement specification, and revision register suitable for regulatory and inspection-authority submission.

Pressure Relief & Vent Sizing Calculations — Scope
Scope of work

Every deliverable — from basis to handover

Complete Pressure Relief & Vent Sizing Calculations scope — every calculation, drawing, specification, and construction support activity.

PRV orifice area calculation for gas/vapour, steam, and liquid service per API 520 Pt I equations
Critical vs. subcritical flow determination with Kd, Kb (backpressure), and Kw (viscosity) correction factors
API standard orifice letter designation (D through T) — next available area selection
Backpressure correction: conventional, balanced-bellows, and pilot-operated PRV type discrimination
Inlet pressure-drop verification under the 3% rule with non-recoverable and acceleration components
Emergency vent sizing for atmospheric storage tanks per API 2000 — thermal and fire cases
Rupture disc and PRV combination device sizing with back-pressure credit per API 520 Annex D
Two-phase flow and reactive system venting using the DIERS Omega method for gassy and hybrid systems
Engineering outcomes

Outcomes of Pressure Relief & Vent Sizing Calculations

BLEVE & Overpressure Prevention
  • Prevents vessel rupture and BLEVE under all credible overpressure scenarios
  • Ensures relief devices open at the correct set pressure
  • Eliminates undersized relief as a major accident contributor
  • Supports IPL credit in LOPA studies
API 520 / ASME PRV Sizing Defence
  • API 520 and ASME UG-125 mandatory relief sizing compliance
  • OSHA PSM mechanical integrity documentation
  • National Board stamped PRV sizing basis
  • EPA RMP emergency release quantity determination
PRV Selection & Test Bench Optimisation
  • Right-sized devices prevent nuisance lifts and seat leakage
  • Correct vent pipe sizing eliminates excessive noise and vibration
  • Identifies where single devices can protect multiple equipment items
  • Supports API 576 proof-test interval planning
PRV Oversizing & Bench-Test Efficiency
  • Avoids costly oversized PRV specification and unnecessary flaring
  • Prevents catastrophic liability from undersized relief
  • Reduces insurance premiums with code-compliant documentation
  • Reusable calculation basis for future debottlenecking
