Chemical Safety Evaluation & Testing

Flammability & Auto-Ignition Temperature Studies

Flash point + LFL/UFL + AIT + MESG + LOC measurement — feeding HAC, inerting, and DSEAR design

Start your projectBack to Chemical Safety
What this study delivers

Flammability & Auto-Ignition
Temperature Studies

Flammability characterisation defines the boundary conditions for safe handling of flammable liquids, vapours, and gases — the engineering data underlying Hazardous Area Classification (HAC) per IEC 60079-10-1, inerting per NFPA 69, and ATEX equipment group selection per IEC 60079-20-1 (Equipment Group I / IIA / IIB / IIC and IIIA / IIIB / IIIC). Flash point per ASTM D93 (Pensky-Martens) or D56 (Tag) determines the lowest temperature at which a liquid emits ignitable vapour — the parameter that drives GHS H224–226 flammable-liquid classification and OSHA / NFPA combustible-liquid categorisation. LFL and UFL per ASTM E681 or EN 1839 define the operating envelope where flame propagation is possible; AIT per ASTM E659 sets the surface-temperature limit for hot-process equipment in HAC zones; MESG (Maximum Experimental Safe Gap) and MIC ratio determine ATEX explosion-group classification (IIA / IIB / IIC for gases); LOC (Limiting Oxygen Concentration) anchors nitrogen-inerting strategy. Modern practice — particularly for hydrogen (IIC, AIT 500°C), ammonia (IIA, very narrow LFL/UFL window), methanol (IIA, AIT 385°C), and the new generation of e-fuels and bio-based feedstocks — combines published literature with site-specific testing when handling conditions exceed standard reference data ranges.

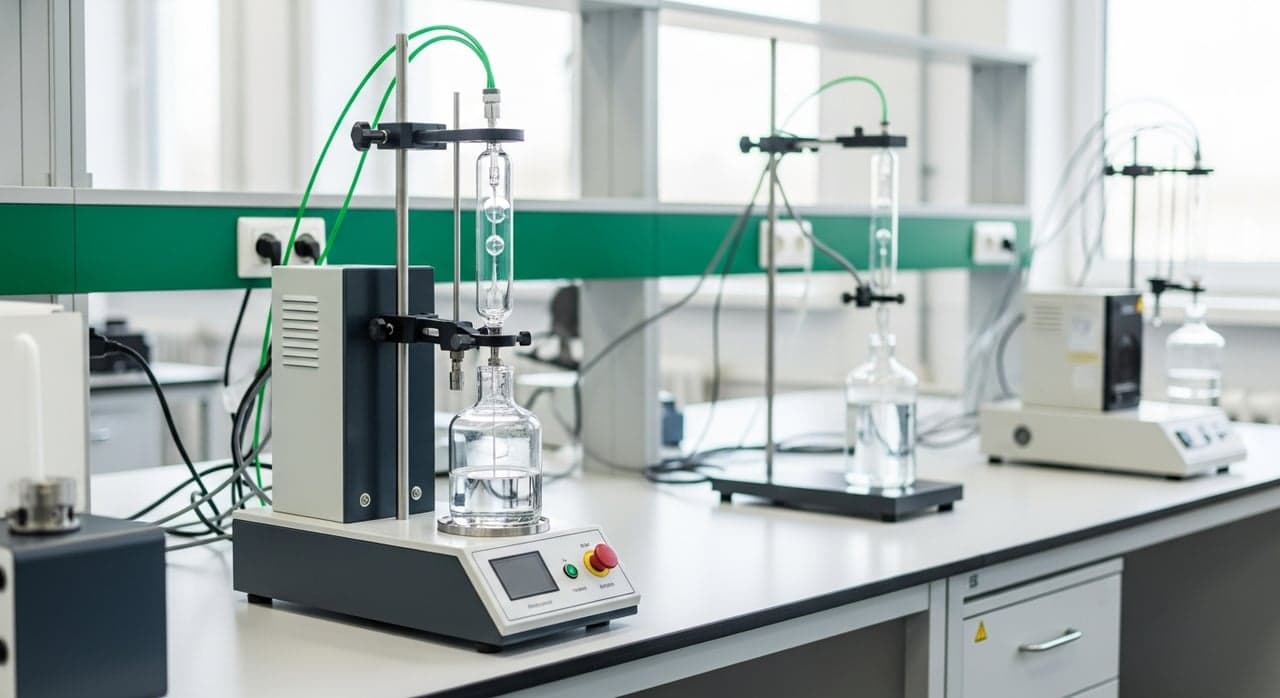

Flammability & Auto-Ignition Temperature Studies — Overview
Study execution

How the study is executed

A structured, facilitated process — from scope definition through close-out — producing defensible, actionable outputs.

Flash Point Testing

Conduct flash point testing per ASTM D93 (Pensky-Martens closed cup) for liquids ≥40°C, ASTM D56 (Tag closed cup) for <40°C, ASTM D3278 (small-scale closed cup) for screening; align with UN TDG flammable liquid classification.

LFL / UFL / Vapour Pressure Determination

Determine Lower / Upper Flammability Limits per ASTM E681 (5-L glass tube method) or computational (Le Chatelier mixing rule for mixtures); measure vapour pressure per ASTM D2879 (isoteniscope); align with NFPA 30 / OSHA flammable liquid hazard class.

Auto-Ignition Temperature (AIT)

Measure AIT per ASTM E659 — drop-introduction in heated flask, observe ignition delay vs temperature; report at minimum temperature for stable autoignition; align with IEC 60079-20-1 T-class (T1: >450°C ... T6: >85°C).

Minimum Ignition Energy (MIE)

Measure MIE per ASTM E582 (capacitor discharge in flammable atmosphere); determine MIE for static-electricity ignition risk; align with IEC 60079-32 static electricity guidance and ATEX Group IIA / IIB / IIC subdivision.

Hot Surface Ignition Testing

Measure hot-surface ignition temperature per ASTM E2079 in oxygen-enriched / depleted atmospheres; align with IEC 60079-20-1 and ATEX equipment temperature class specification (T1-T6).

Hazardous Area Classification Input

Compile flammability dossier — flash point, LFL/UFL, AIT, MIE, T-class — for HAC (Hazardous Area Classification) per IEC 60079-10-1 / API RP 500 / NFPA 497; integrate with HAC drawings, equipment EPL selection, and ATEX certification.

Flammability & Auto-Ignition Temperature Studies — Scope
Study scope

What the study covers in full

Flash point per ASTM D93 (Pensky-Martens, closed cup) or D56 (Tag) feeding GHS H224–H226
Fire point determination — typically 5–20 °C above flash for liquids
LFL and UFL per ASTM E681 (US) or EN 1839 (EU) with temperature and pressure correction
Auto-Ignition Temperature (AIT) per ASTM E659 or EN 14522 in glass vessel
Burning velocity and laminar flame speed for VCE consequence modelling
Limiting Oxygen Concentration (LOC) for nitrogen-inerting design per NFPA 69
Maximum Experimental Safe Gap (MESG) for ATEX explosion-group IIA / IIB / IIC
Minimum Ignition Current Ratio (MIC) — supplementary explosion-group parameter
Hot-surface ignition correlation for HAC equipment T-class selection (T1–T6)
Hydrogen / ammonia / e-fuel-specific testing where literature data is limited
Why it matters

Outcomes of Flammability & Auto-Ignition Temperature Studies

Flash Point & Ignition Risk Reduction
  • Defines safe operating temperature envelope
  • Prevents auto-ignition and flammable atmosphere
  • Supports HAC zone classification
  • Drives inerting and purging design
ATEX / IEC 60079 Flammability Defence
  • Provides data for IEC 60079 HAC studies
  • Supports GHS flammability classification
  • Documents DOT/UN transport classification
  • Maintains compliance with NFPA 30 flammable liquid handling
Zone Classification & Ventilation Quality
  • Informs equipment Ex-rating selection
  • Hardens hot-work and PTW controls
  • Targets ignition source elimination programmes
  • Supports MOC for new flammable chemicals
Flammability-Related Incident Cost Prevention
  • Right-sizes Ex-rated equipment selection
  • Avoids over-specified HAC zone footprints
  • Targets inerting investment to true needs
  • Supports flammable inventory reduction
