Detailed Engineering Solutions

Equipment Sizing & Specification

Process datasheets and specifications for static and rotating equipment

Start your project Back to Detailed Engineering

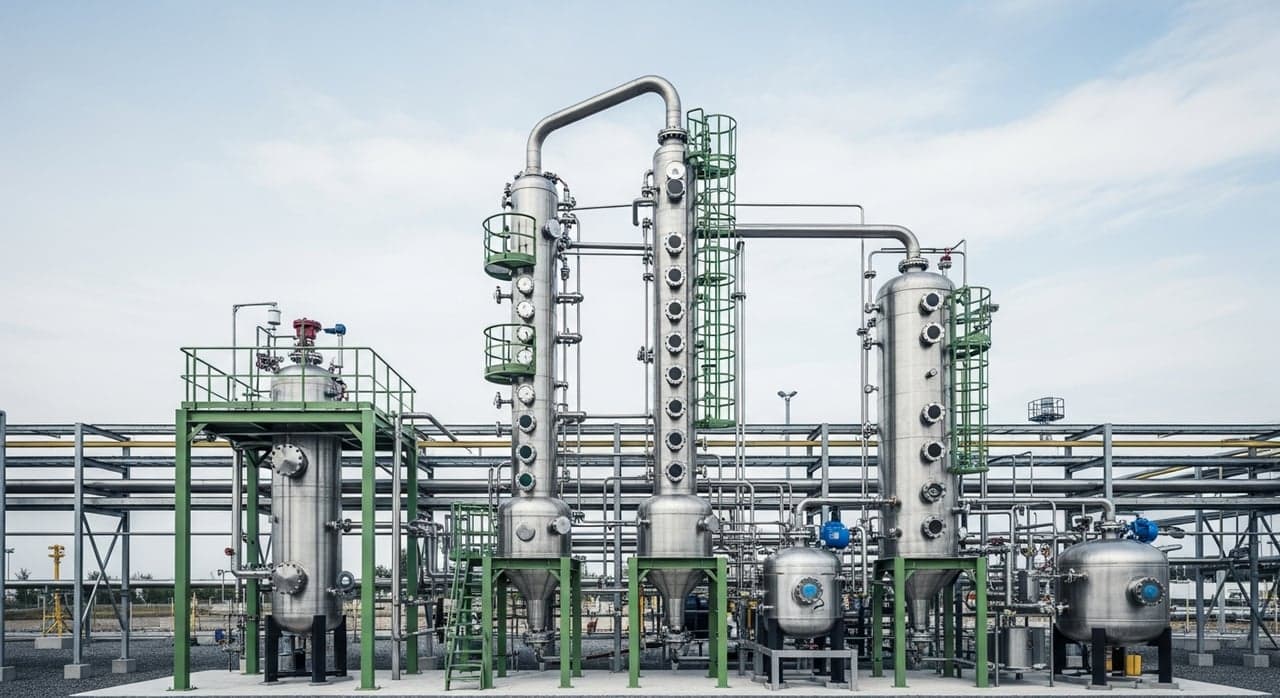

Technical overview

Equipment Sizing
& Specification

Equipment sizing and specification translates process simulation outputs into procurement-ready engineering documents. Under-specified equipment arrives undersized or over-designed; poorly written datasheets generate expensive vendor queries and commissioning rework. Arborion Global produces process datasheets and procurement specifications to API, ASME, and TEMA standards for static equipment, heat exchangers, pumps, compressors, and packaged units — complete to the point of ITB issue.

Engineering process

Equipment Sizing & Specification workflow

Process Duty Definition

Extract equipment duty from simulation output; define design conditions, flow compositions, and pressure/temperature envelope.

Sizing & Type Selection

Apply API, ASME, and TEMA sizing methods; select equipment type, configuration, and capacity margins.

Mechanical Design Coordination

Coordinate nozzle loads, support type, material grade, and corrosion allowance with mechanical discipline.

Datasheet Authoring

Prepare process datasheets to API/ASME/TEMA data-sheet format, ready for procurement and vendor submission.

Procurement Specification

Compile ITB technical specification, vendor pre-qualification criteria, and commercial evaluation matrix.

Vendor Review & FAT Support

Review vendor engineering documents, attend factory acceptance tests, and issue punch-list sign-off.

Equipment Sizing & Specification — Scope

Scope of work

Every deliverable — from basis to handover

Complete Equipment Sizing & Specification scope — every calculation, drawing, specification, and construction support activity.

Process datasheet authoring for vessels, columns, exchangers, pumps, and compressors

Equipment sizing per API, ASME, and TEMA code methodologies

Mechanical design coordination: nozzle loads, support type, and corrosion allowance

Material selection for corrosion service, HIC/SSC, and temperature extremes

Insulation, tracing, and painting specification integration

Procurement specification and ITB technical package compilation

Vendor offer technical evaluation matrix and deviation review

FAT/SAT witnessing and final datasheet as-built update

Engineering outcomes

Outcomes of Equipment Sizing & Specification

Design Margin & Material Selection

Specifies equipment with adequate design margins
Aligns mechanical design with process duty
Bolsters material selection for service
Supports relief and overpressure design

API / ASME / TEMA Code Defence

Adheres to API, ASME, TEMA codes
Documents material and design certification
Supports regulatory inspection
Withstands client and AHJ audit

Vendor Quality & Commissioning Readiness

Compresses equipment failure frequency
Supports realistic ITM programmes
Improves vendor selection quality
Fortifies commissioning capability

Capex & Lifecycle Maintenance Savings

Avoids over-specified equipment cost
Reduces lifecycle maintenance cost
Improves vendor pricing through clear specification
Supports CAPEX optimisation

Get Started

Ready to start your project?

Speak with our team to scope an engagement tailored to your facility, regulatory context, and lifecycle stage.
