Emergency Shutdown System
Design (ESD)

Emergency Shutdown System design — particularly on offshore platforms, LNG facilities, and refining complex units — implements tiered logic that progressively isolates, depressurises, and inerts process inventories as the severity of the credible accident scenario grows. The dominant frameworks are API RP 14C (offshore SAFE chart-based ESD), NORSOK S-001 (Norwegian Continental Shelf safety system) which has become the de-facto international standard for FPSOs and complex topsides, and IEC 61511 for onshore process industries. Tier definitions typically run ESD-0 (Abandon Platform / Total Site Shutdown), ESD-1 (Process Shutdown — all hydrocarbon-handling), ESD-2 (Unit Shutdown — partial), ESD-3 (Equipment Shutdown — local SIF), with cause-and-effect logic linking initiator (F&G, manual pushbutton, process SIF) to action (block valve closure, depressurisation, pump trip, fire-pump start, deluge activation). Modern design now also integrates blowdown-line sizing per API RP 521 (flare-system simultaneity), high-integrity-pressure-protection systems (HIPPS) per API 17O as ESD alternatives for subsea, and cybersecurity overlay per IEC 62443.

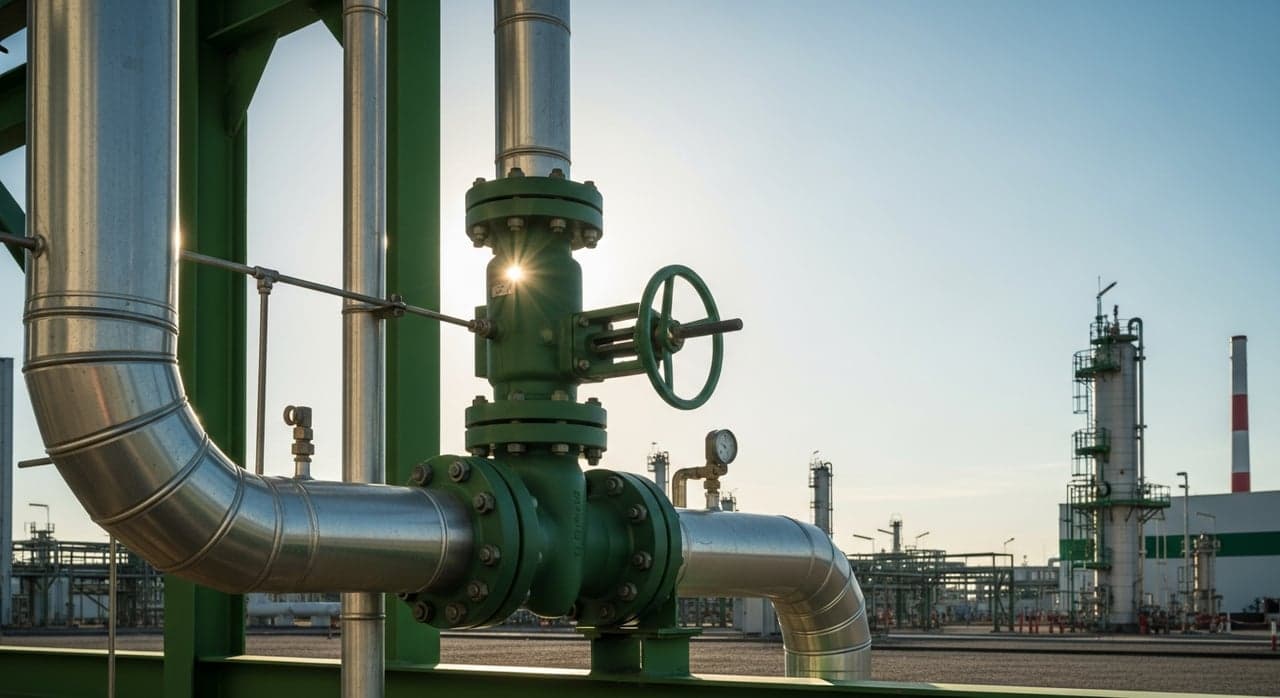

Emergency Shutdown System Design (ESD) — Overview
Engineering process

Emergency Shutdown System Design (ESD) workflow

ESD Scope & SIL Allocation Review

Define ESD scope from PHA/LOPA output — ESD-0 (total), ESD-1 (process), ESD-2 (unit), ESD-3 (sub-unit); allocate SIL per SIF following IEC 61511 PHA workflow; verify scope against API RP 14C minimum SAFE chart requirements for offshore.

ESD Architecture & Voting Logic

Specify ESD logic solver platform (Triconex, HIMA, AB GuardLogix); design voting architecture (1oo1D, 1oo2, 2oo3) matched to SIL target and spurious-trip tolerance; segregate ESD from BPCS per IEC 61511 independence requirement.

Cause & Effect Matrix Development

Author ESD cause-and-effect matrix linking initiator → ESD level → executive actions (valve closure, motor trip, equipment isolation); review for completeness against PHA scenarios; specify reset and override logic per IEC 61511 manual-operation requirements.

Final Element & Sensor Specification

Specify ESD valves (ball / gate / butterfly) with fire-safe rating per API 607/6FA, partial-stroke-test capability for SIL ≥2; specify sensors (pressure, temperature, level, gas) with FMEDA data; verify SFF/HFT vs SIL target per IEC 61508.

FAT / SAT & Proof-Test Programme

Develop ESD FAT procedure exercising full cause-and-effect; SAT with end-to-end loop testing; specify proof-test frequency from PFD/PFH calculation; design partial-stroke-test schedule for SIL ≥2 SDV/BDV; specify bypass and override management.

Safety Manual & Cybersecurity Hardening

Compile ESD Safety Manual per IEC 61511 Cl.16; implement IEC 62443 zone-and-conduit cybersecurity with SIS isolation from corporate network; specify access control, audit log, and MOC procedure for ESD modifications.

Emergency Shutdown System Design (ESD) — Scope
Scope of work

Every deliverable — from basis to handover

Complete Emergency Shutdown System Design (ESD) scope — every calculation, drawing, specification, and construction support activity.

ESD tier-structure design — ESD-0 / -1 / -2 / -3 with progressive scope and operator-action expectation
Cause-and-effect matrix linking F&G, manual ESD, process SIFs to isolation / depressurisation / utility actions
Final-element selection — ESDV (Emergency Shutdown Valve), BDV (Blowdown Valve), SDV (Shutdown Valve)
Valve specification — SIL-rated, fail-safe direction, fugitive-emission tightness per ISO 15848
Partial-stroke testing (PST) capability on critical block valves for online diagnostic coverage
Blowdown-line and flare-system simultaneity per API RP 521
HIPPS (High-Integrity Pressure Protection System) design per API 17O for subsea / high-pressure
Manual ESD pushbutton placement per NORSOK S-001 with HF / siting study
Bypass / inhibit management with time-limit governance and compensating-measure logic
Cybersecurity zone-and-conduit per IEC 62443 with secure remote-access design
Engineering outcomes

Outcomes of Emergency Shutdown System Design (ESD)

ESD Functional Integrity Assurance
  • Achieves fast, deterministic isolation across credible major-accident scenarios
  • Drives blowdown design that prevents BLEVE / vessel rupture cascades
  • Closes the silent partial-stroke-test gap on critical block valves
  • Anchors the post-Macondo / post-Deepwater Horizon emergency-shutdown discipline
IEC 61511 / API 14C ESD Defence
  • API RP 14C / NORSOK S-001 audit-defensible design
  • IEC 61511 Ed.2 lifecycle compliance
  • Withstands BSEE / HSE / PSA Norway / DGH offshore regulator examination
  • Aligns with IEC 62443 cybersecurity requirements
Nuisance-Trip & Availability Optimisation
  • Reduces spurious-trip frequency through MTTFS-aware architecture
  • Enables online partial-stroke testing on critical ESDVs
  • Sharpens bypass governance preventing creeping-impairment patterns
  • Improves post-trip restart efficiency with documented restart logic
SIL Allocation & Trip-Rate Efficiency
  • Right-sizes SIL claim and valve specification
  • Cuts spurious-trip business-interruption cost — typically 50–80% reduction
  • Reduces capex through PST credit eliminating offline test scope
  • Trims underwriter loadings on high-hazard ESD-dependent assets
